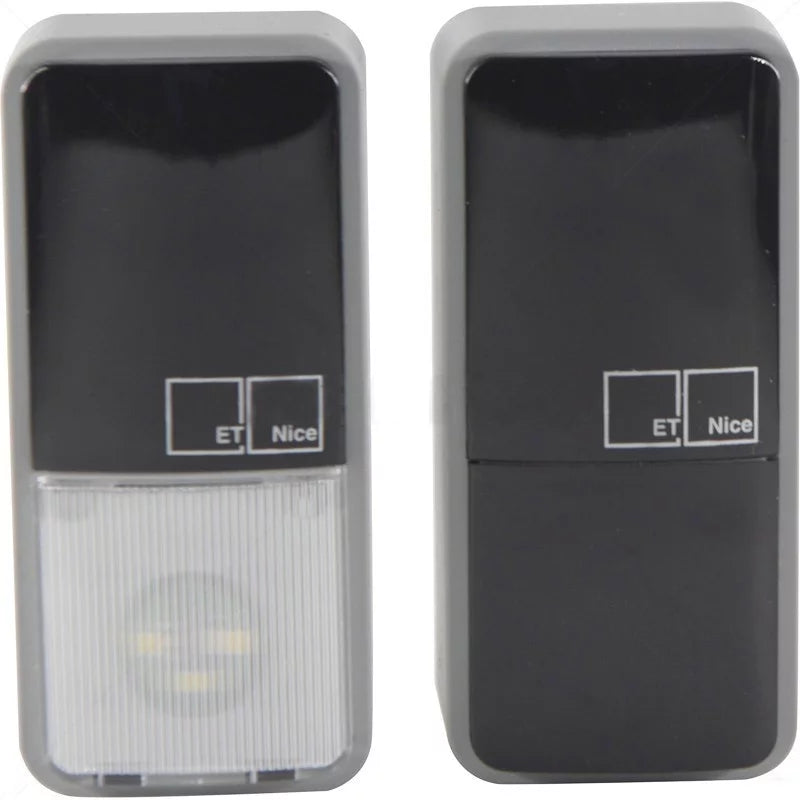

Nice Gate Wave Semi-Wireless IR Safety Beams

ET NIce Wave Semi-Wireless IR Safety Beams

• Standard Mode - Operating Distance: 6m
• Standard Mode - Expected Battery Life: 3 years
• Boost Mode - Operating Distance: 12m
• Boost Mode - Expected Battery Life: 1 year
• Receiver Power Supply: 10-30 VAC/DC
• Transmitter Power Supply: 1 x 3V DC CR123A Battery (Supplied)
• Receiver Power Consumption: 28mA (@ 12VDC)
• Selectable Transmission Channels: 2
• Courtesy Light Module: Standard – LED
• Output Contact: N/C and N/O, Potential Free Contact; “dead man fallout ”
• Output Contact Rating: 2A @ 30V DC Non Inductive
• Alignment Area: 1m²@ 10m
• Parallel Mounting Surfaces not required
• Mechanical Tilt Function - Adjustable up to 32 Degrees
• Operating Temperature: -10°C / +50°C
• Ingress Protection: IP 44
• Dimensions: 105mm x 50mm x 40mm
